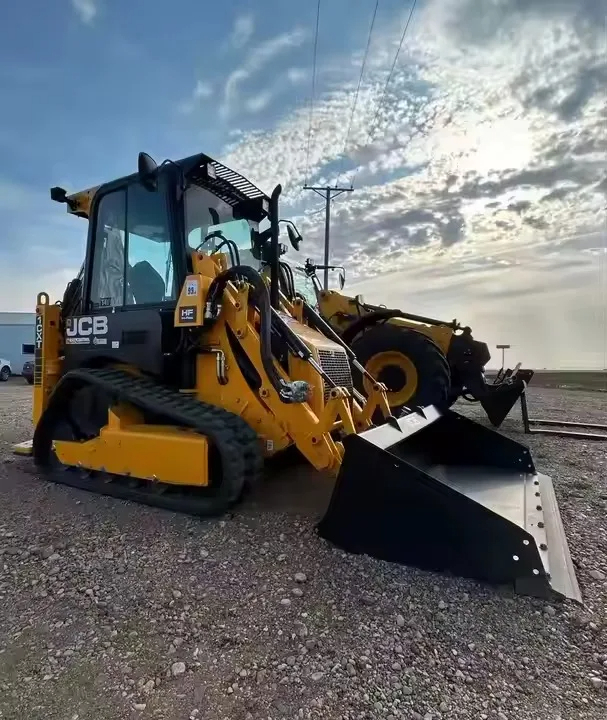

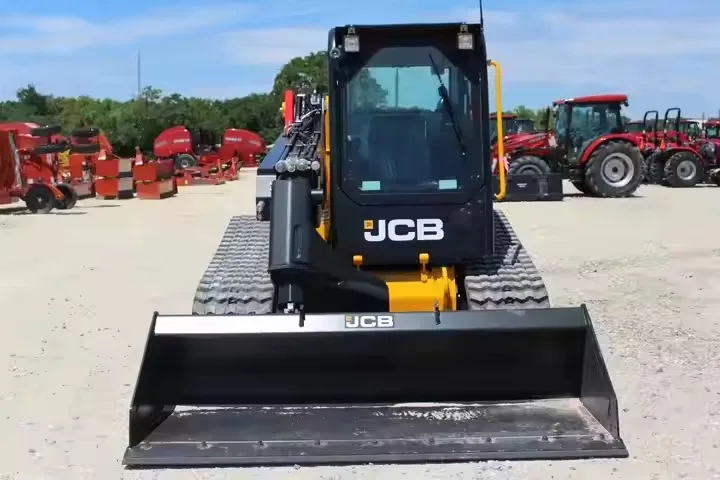

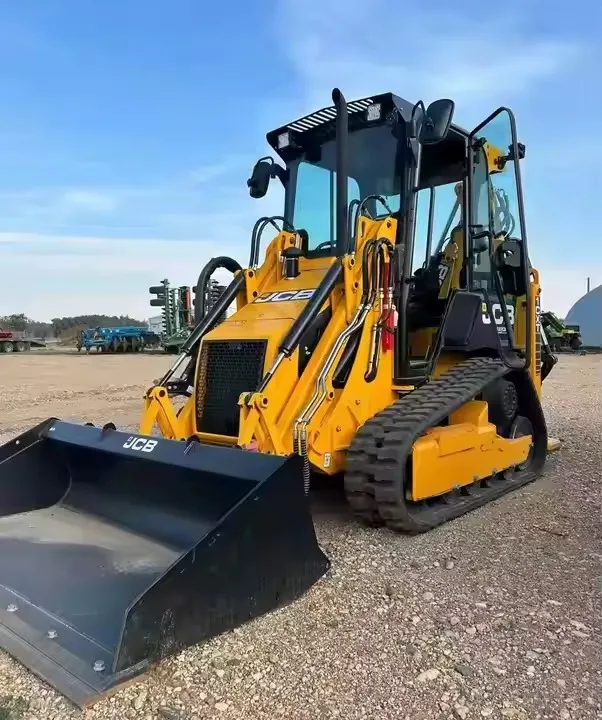

The JCB 1CX Backhoe Loader is a powerful and versatile machine designed for various construction and excavation tasks. With a backhoe dig depth of 8.4 feet and a loader lift capacity of 1345 pounds, this compact equipment offers impressive capabilities in a small package. The 50 horsepower engine, efficient hydraulics system, and intuitive controls make it easy to operate while delivering excellent performance on the job site. Additionally, the durable construction and convenient features of the JCB 1CX ensure a productive and reliable experience for operators in various working conditions.





General Specifications

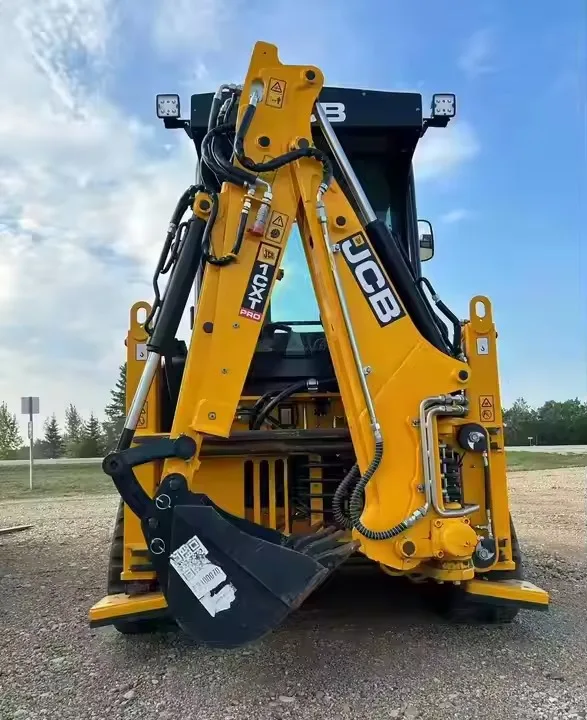

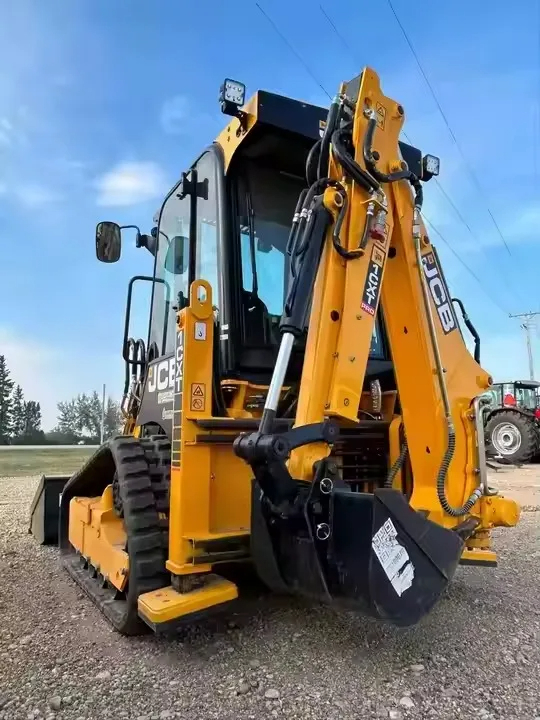

Backhoe

Dig Depth	8 ft (3 m)
Loading Height	8 ft (2 m)
Max dig depth	8 ft (3 m)
Max Digging Depth	8 ft (3 m)
Reach From Swivel	11 ft (3 m)

Capacities

Cooling system	2 gal (8 l)
Engine oil with filter	3 gal (10 l)
Fuel Tank	12 gal (45 l)

Dimensions

Ground Clearance	1 ft (0 m)
Height to Top of Suspended Cab	7 ft (2 m)
Transport Length	11 ft (3 m)
Transport Width	5 ft (1 m)
Wheelbase	4 ft (1 m)

Electrical System

Alternator	50
Battery	72A/hour
Front working lights	2 adjustable
Gauges	Fuel Level Hour meter
Pre-wire	Beacon
Rear working lights	2 adjustable

Engine

Aspiration	Natural
Displacement	134 cu in (2,201 cu cm)
Emissions Certification	Stage EC Stage IIIA
Engine Model	104-22
Fuel Type	Replaceable cartridge plus water/sediment separator prefilter
Gross Power	50 hp (37 kw)
Net Max Torque	100 lbs ft (135 nm)
Net Power	47 hp (35 kw)
Number of Cylinders	4
Power Measured @	2800 rpm
Rated engine speed	2800 rpm
Torque Measured @	2000 rpm

Hydraulic System

Pump Flow Capacity	12 gpm (45 lpm)
Relief Valve Pressure	3000 psi

Loader

Breakout Force	5,179 lbs (2,349 kg)
Bucket Breakout Force	5,179 lbs (2,349 kg)
Bucket Width	56 in (143 cm)
Clearance at Max Dump Height	7 ft (2 m)
Dig Depth	2 in (5 cm)
Dump height	7 ft (2 m)
Lift Capacity	1,345 lbs (610 kg)
Load over height	8 ft (3 m)
Reach at Max Dump Height	1 ft (0 m)
SAE – Net	47 hp (35 kw)

Operating Specifications

Cooling System Fluid Capacity	2 gal (8 l)
Fuel Capacity	12 gal (45 l)
Hydraulic System Fluid Capacity	12 gal (45 l)
Oil System Fluid Capacity	1 gal (5 l)
Operating Voltage	12 volts
Operating Weight	6,150 lbs (2,790 kg)
Operating Weight 4wd	6,150 lbs (2,790 kg)
Tire Size Front – 2wd / 4wd	7×15

Tires

Rear Tires Size

7×15

Transmission

Max Speed	7 mph (11 kph)
Max Speed – Reverse	7 mph (11 kph)
Number of Forward Gears	1
Number of Reverse Gears	1
Transmission Type	Hydrostatic

Travel Speed

4Th Gear Fwd

7 mph (11 kph)
