Description

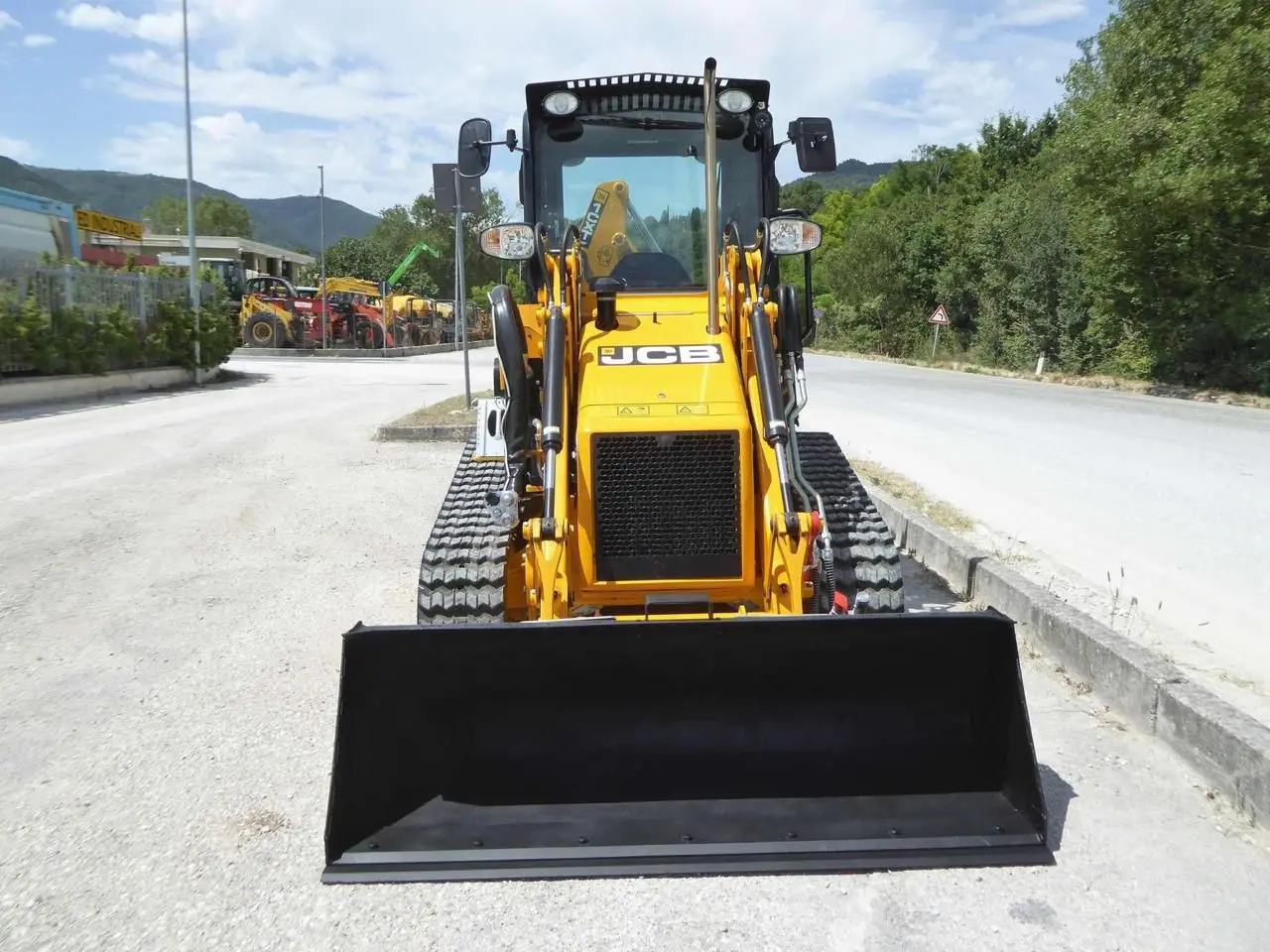

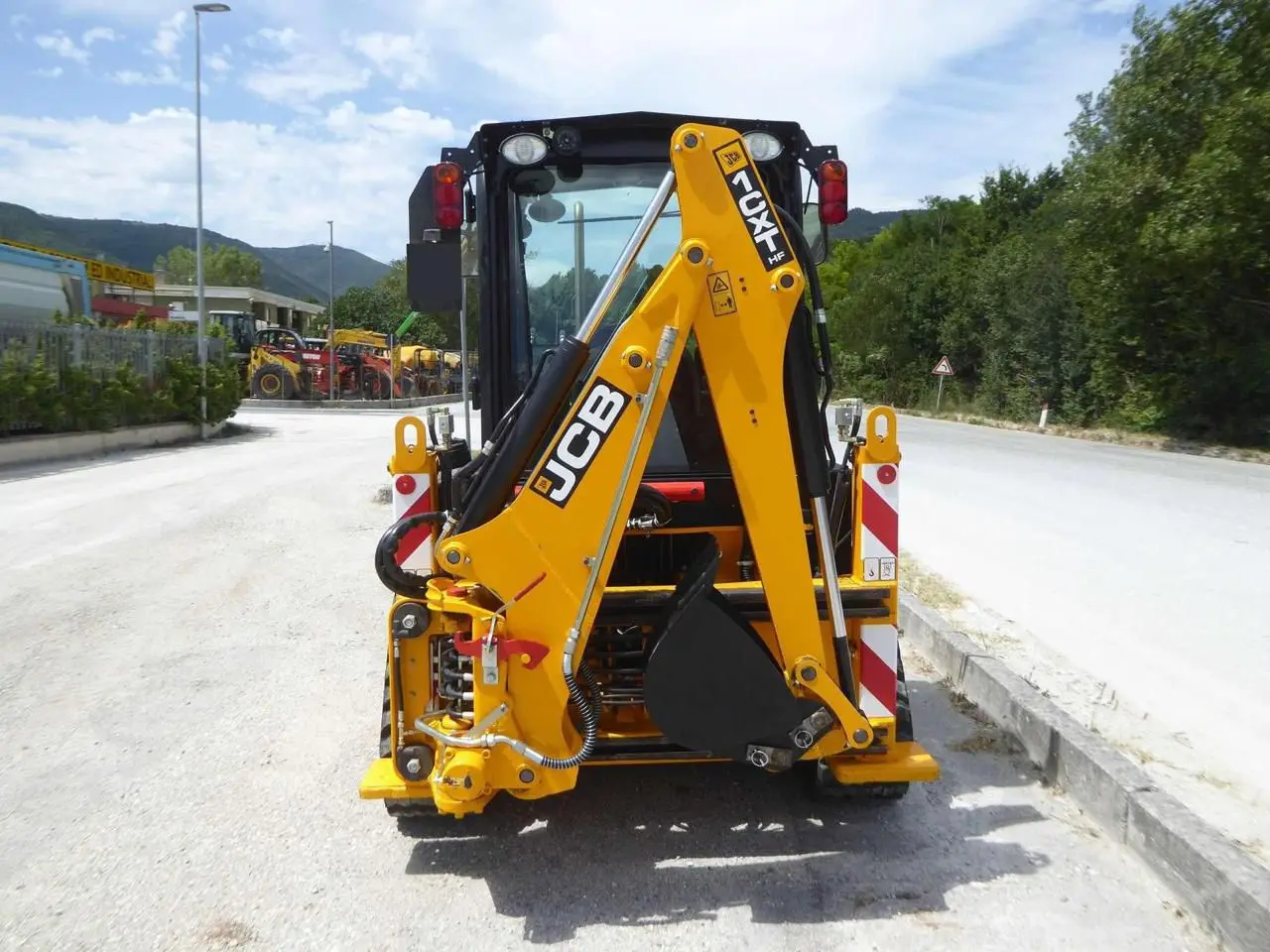

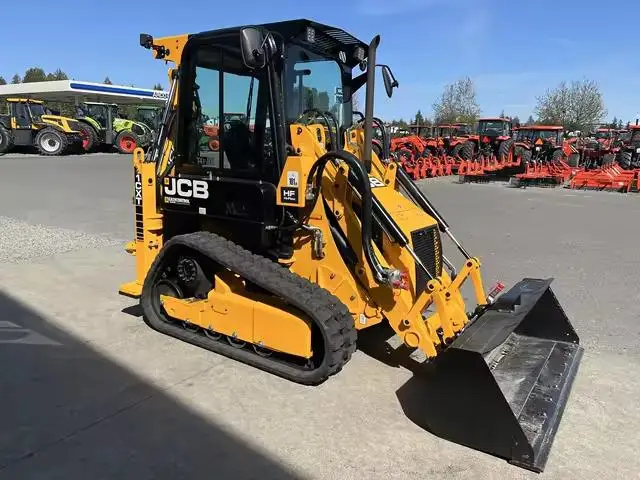

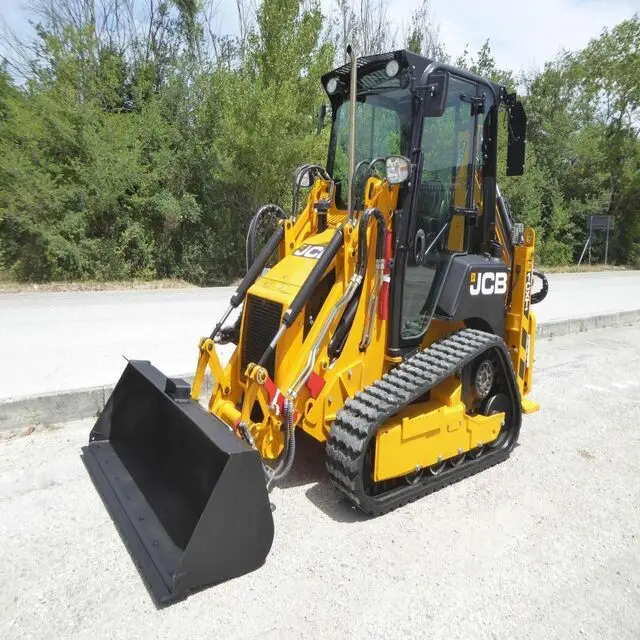

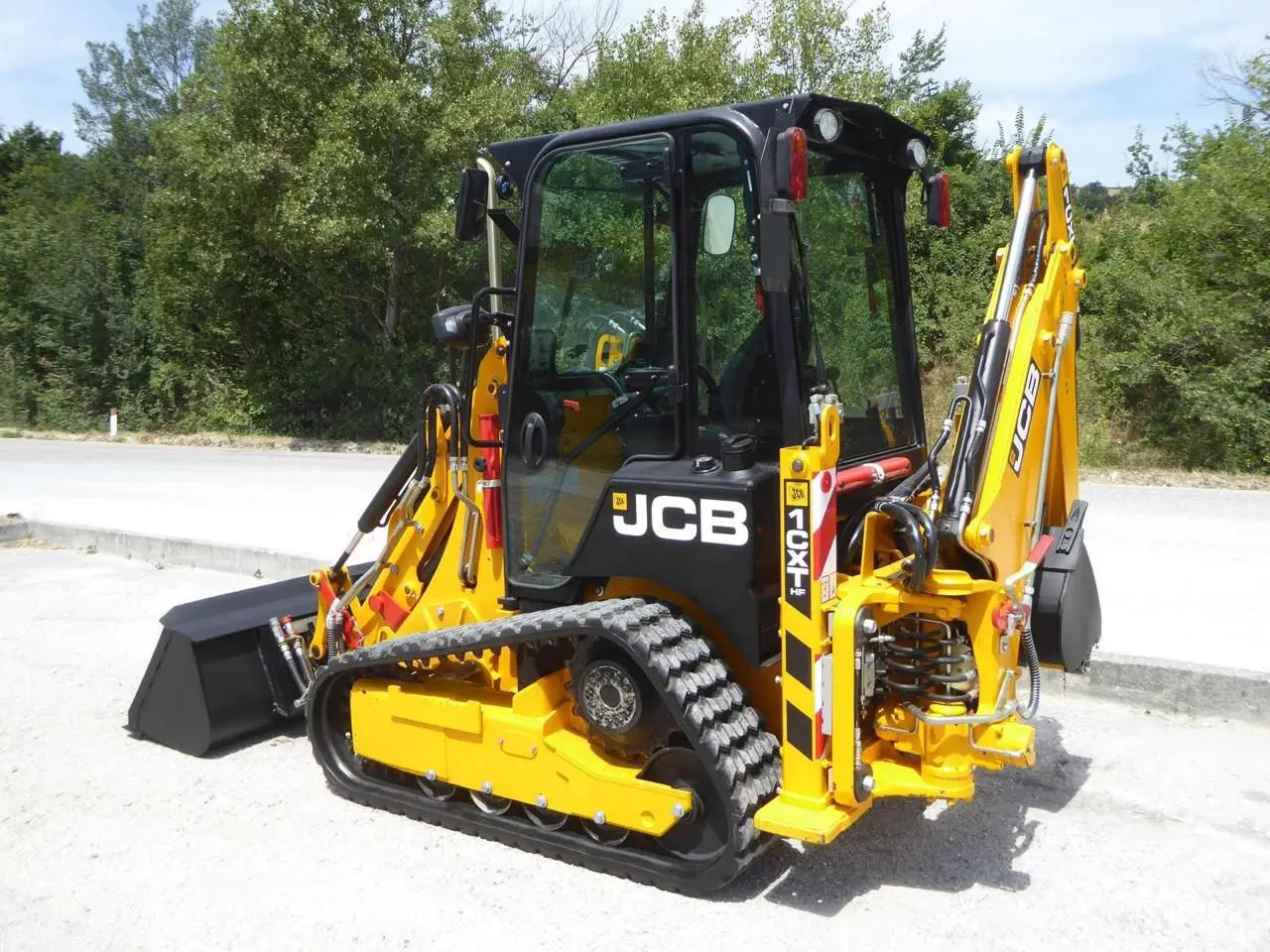

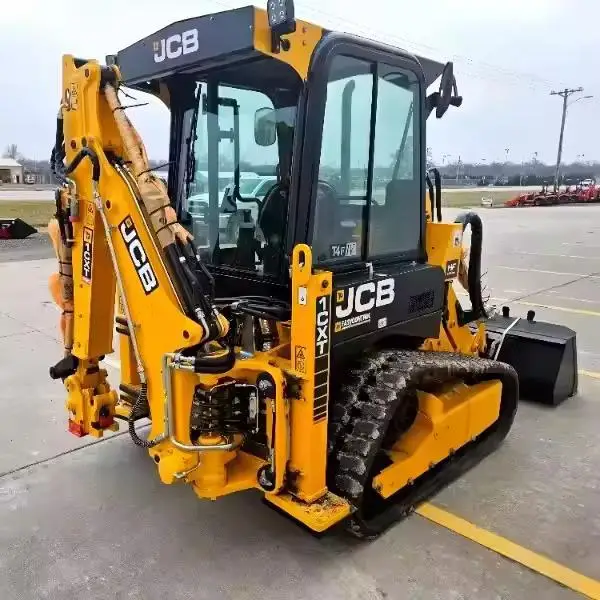

JCB 1CXT HF Backhoe loader
JCB 1CXT HF Backhoe loader
| Specification | JCB 1CXT |
|---|---|
| Machine Type | Compact tracked backhoe loader |
| Operating Weight | 4,355 kg (9,572 lb) |
| Engine | JCB Diesel by Kohler KDI 1903 TCR, 3-cylinder turbo diesel |
| Gross Engine Power | 49 hp (36.3 kW) |
| Emission Standard | EPA Tier 4 Final / EU Stage V (market dependent) |
| Transmission | Hydrostatic drive |
| Track Width | 325 mm (12.8 in) rubber tracks |
| Hydraulic Flow | 26.4 gpm (100 L/min) |
| Fuel Tank Capacity | 45 L (11.8 gal) |
Loader Performance
- Rated Operating Capacity (35%): 665 kg (1,466 lb)
- Maximum Hinge Pin Height: 2.64 m (8 ft 8 in)
- Overall Operating Height: 2.41 m (7 ft 11 in)
- Loader Arms: Parallel lift as standard
- Universal quick hitch compatible with most skid steer attachments.
Backhoe Performance
- Maximum Digging Depth (with extending dipper): 3.08 m (10 ft 1 in)
- Maximum Ground-Level Reach: 3.91 m (12 ft 10 in)
- Excavation Arc: 90°
- Optional extending dipper for increased reach.
Dimensions
| Parameter | Value |
|---|---|
| Overall Width | 1.80 m (5 ft 11 in) |
| Cab Height | Less than 2.38 m (7 ft 10 in) |
| Operating Weight | 4,355 kg |
| Transport | Towable by many light-duty trucks (subject to local regulations) |
Standard Features
- Fully enclosed ROPS/FOPS cab with HVAC.
- Side-entry cab for easy access.
- Swiveling operator seat for loader/backhoe operation.
- Choice of ISO or SAE excavator control patterns.
- Rubber tracks for low ground pressure and excellent traction.
- Auxiliary hydraulics for powered attachments.
- Mechanical universal skid steer quick coupler.
- High visibility design with sloped engine hood.
- 500-hour engine service intervals.
- No DEF or DPF required on applicable engine configurations.
Typical Applications
- Urban construction
- Utility trenching
- Landscaping
- Road maintenance
- Agriculture
- Confined job sites
- Soft ground and sensitive surfaces
